In-Line Check Valves

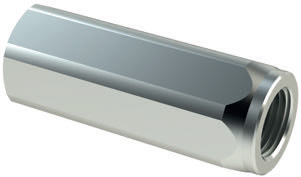

VUR-BSPP Check Valves
| Symbol | Code | Max. Flow (L/min.) | Max. Pressure (bar) | Port Sizes |
|---|---|---|---|---|
" width="264" height="108" class="alignnone size-full wp-image-2308" /> | VUR180SF1 | 5 | 400 | 1/8" BSPP |
| VUR140SF1 | 15 | 400 | 1/4" BSPP | |
| VUR380SF1 | 30 | 400 | 3/8" BSPP | |
| VUR120SF1 | 50 | 400 | 1/2" BSPP | |
| VUR180SP1 | 5 | 400 | 1/8" BSPP | |
| VUR140SP1 | 15 | 400 | 1/4" BSPP | |
| VUR380SP1 | 30 | 400 | 3/8" BSPP | |
| VUR120SP1 | 50 | 400 | 1/2" BSPP | |
| VUR340SP1 | 90 | 400 | 3/4" BSPP | |
| VUR100SP1 | 150 | 350 | 1" BSPP | |
| VUR114SP1 | 200 | 350 | 1 1/4" BSPP | |
| VUR112SP1 | 300 | 350 | 1 1/2" BSPP | |
| VUR200SP1 | 400 | 250 | 2" BSPP |
VUN-BSPP Check Valves
| Symbol | Code | Max. Flow (L/min.) | Max. Pressure (bar) | Port Sizes |
|---|---|---|---|---|
" width="249" height="109" class="alignnone size-full wp-image-2305" /> | VUN140SF1 | 15 | 400 | 1/4" BSPP |
| VUN380SF1 | 30 | 400 | 3/8" BSPP | |
| VUN120SF1 | 50 | 400 | 1/2" BSPP | |
| VUN140SP1 | 15 | 400 | 1/4" BSPP | |
| VUN380SP1 | 30 | 400 | 3/8" BSPP | |
| VUN120SP1 | 50 | 400 | 1/2" BSPP | |
| VUN340SP1 | 90 | 400 | 3/4" BSPP | |
| VUN100SP1 | 150 | 350 | 1" BSPP |
VMF-BSPP Check Valves
| Symbol | Code | Max. Flow (L/min.) | Max. Pressure (bar) | Port Sizes |
|---|---|---|---|---|
" width="244" height="115" class="alignnone size-full wp-image-2302" /> | VMF140SF1 | 15 | 400 | 1/4" BSPP |
| VMF380SF1 | 30 | 400 | 3/8" BSPP | |
| VMF120SF1 | 50 | 400 | 1/2" BSPP | |
| VMF140SP1 | 15 | 400 | 1/4" BSPP | |
| VMF380SP1 | 30 | 400 | 3/8" BSPP | |
| VMF120SP1 | 50 | 400 | 1/2" BSPP | |
| VMF340SP1 | 90 | 400 | 3/4" BSPP | |
| VMF100SP1 | 150 | 350 | 1" BSPP |
