Gear pumps Gr.2 ø36.5 FLANGE – TAPER SHAFT

Technical Data:	Options available:
Displacements from 4.2 cm3/rev to 39.6 cm3/rev Maximum pressures up to 300 bar Rotation speeds up to 3500 rpm	Viton Maximum pressure valve Shaft seal with metal support washer for back pressure up to 6 bar Inlet and outlet in the body, front flange or back cover Double shaft Other shafts available: - Tapered shaft 1:8 with key - Parallel shaft with key - Splined shaft

Configurations

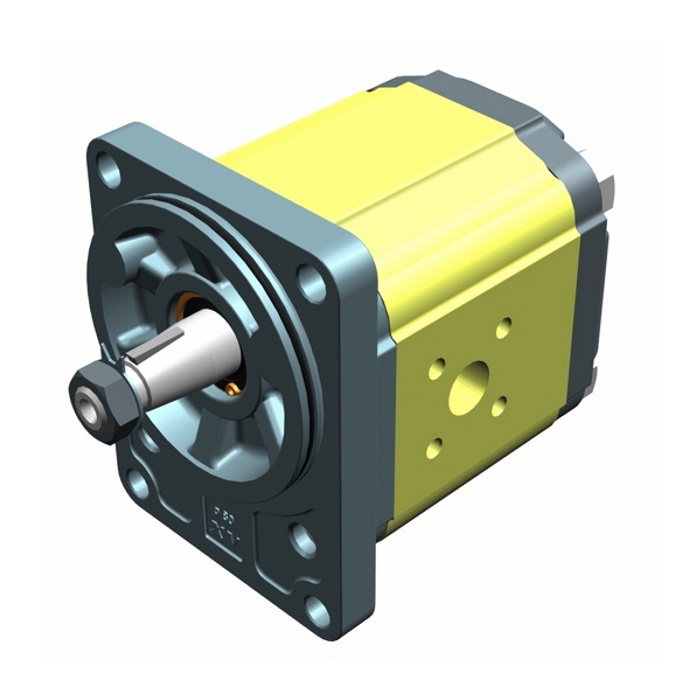

XP217 - Standart European pump ø80 FLANGE – TAPER SHAFT

Send an Inquiry

Order code example:

X

2

P

51

42

F

S

R

A

Series		X	series XV
Group		2	group 2
Category		P	unidirectional pump
Displacement		51	17
Flange		42	Ø80 GERMAN STARDARDIZED right rotation (with OR)
Shaft		F	CO002 - Tapered 1:5 - ø17.4 - M12x1.5 - key thk.3
Body	IN	S	inlet - Ø40 a 45° Ø20 M6
Body	OUT	F	outlet - Ø35 a 45° Ø15 M6
Cover		A	standard

Technical data table
TYPE	Displacement	Max. Pressure		CODE
TYPE	cm3/rev	P1 bar	P3 bar	Left rotation	Right rotation
XV-2P/04	4.2	260	300	X 2 P 41 41 F S R A	X 2 P 41 42 F S R A
XV-2P/06	6	260	300	X 2 P 43 41 F S R A	X 2 P 43 42 F S R A
XV-2P/09	8.4	260	300	X 2 P 45 41 F S R A	X 2 P 45 43 F S R A
XV-2P/11	10.8	260	300	X 2 P 47 41 F S R A	X 2 P 47 44 F S R A
XV-2P/14	14.4	250	290	X 2 P 49 41 F S R A	X 2 P 49 45 F S R A
XV-2P/17	16.8	230	270	X 2 P 51 41 F S R A	X 2 P 51 46 F S R A
XV-2P/19	19.2	210	250	X 2 P 53 41 F S R A	X 2 P 53 47 F S R A
XV-2P/22	22.8	200	240	X 2 P 55 41 F S R A	X 2 P 55 48 F S R A
XV-2P/26	26.2	170	210	X 2 P 57 41 F S R A	X 2 P 57 49 F S R A
XV-2P/30	30	160	200	X 2 P 59 41 F S S A	X 2 P 59 50 F S S A
XV-2P/34	34.2	150	190	X 2 P 61 41 F S S A	X 2 P 61 51 F S S A
XV-2P/40	39.6	140	180	X 2 P 63 41 F S S A	X 2 P 63 52 F S S A
P1) Max. working pressure - P3) Max. peak pressure For heavy-duty applications, it is recommended to check the admissible torque of the shaft
